Plant Features:

1. Plant design is compact, need less space, height, manufactured using minimum structure with good factor of safety easy to run and maintain energy efficient.
2. Plant capacity 4-5 MT/hr on 5mm Pellet size.
3. Total power required =270 HP (Approx).
4. Designed with expandable capacity measures in future.
5. Plant is designed to operate & maintain easily.
6. In case of automation failure, provision of manual operation or by pass is provided.
7. Minimum Power consumption, Latest technology, recovers investment very shortly.

Machines Features:

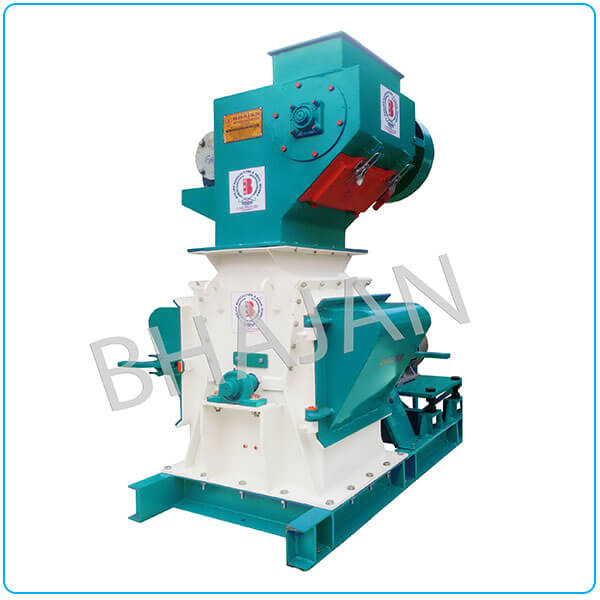

Grinding: Our Standard Hammer mill is provided in this plant which runs on 75-80 H.P. Power. This machine is equipped with interlock sieve pressing system which makes changing sieves very easy & quick. VFD Controlled Rotary van feeder controls the material load with respect to main motor of hammer mill.

Mixing: Mixer is also known as the heart of a feed plant. Our latest Double shaft Paddle mixer Model BAEW-TSPM-10 (1 ton/batch) is provided in this plant, which ensures mixing efficiency CV < 5% in just 2-3 minutes. A homogeneous mixture is achieved in very short span of time. It saves the time & consumes less energy.

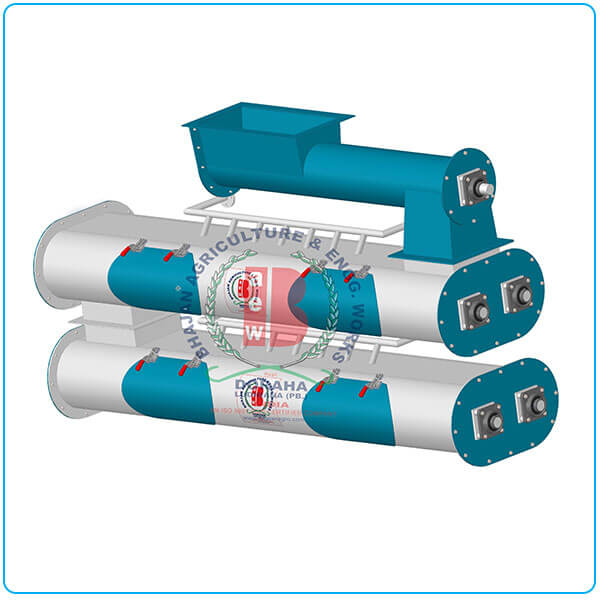

Conditioning: Stainless steel Double shaft conditioner [2Nos.] is used to achieve good conditioning which results in low power consumption of pellet machine.

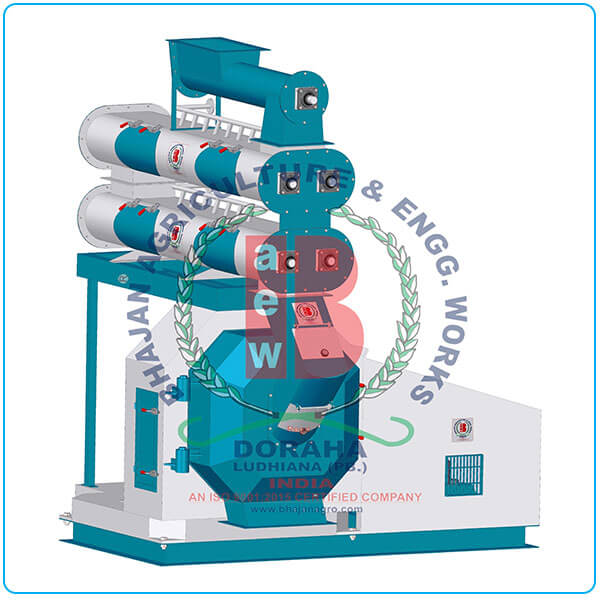

Pelleting: Pellet mill model BAEW-PM 420 used to achieve 4-5 MT/hr on 5 mm hole Die [Stainless steel] & unique

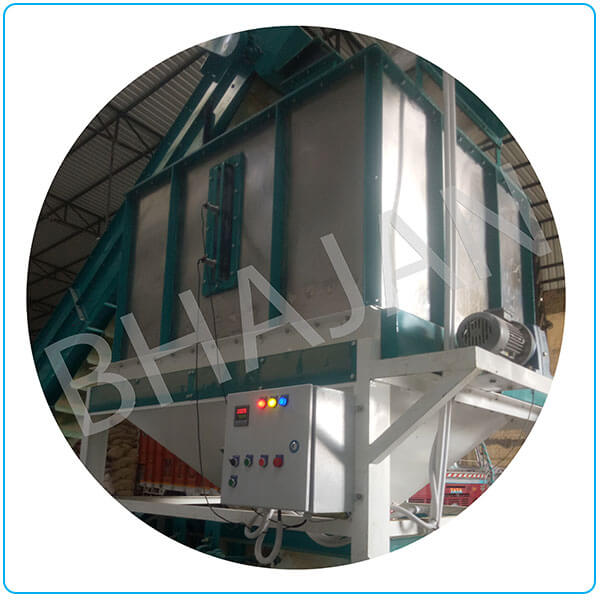

Cooling: Counter flow cooler [Stainless Steel] with stationary product distributor for uniformly cooling of hot pellets, I.D. Fan with Dynamically balanced rotor & product level sensors.

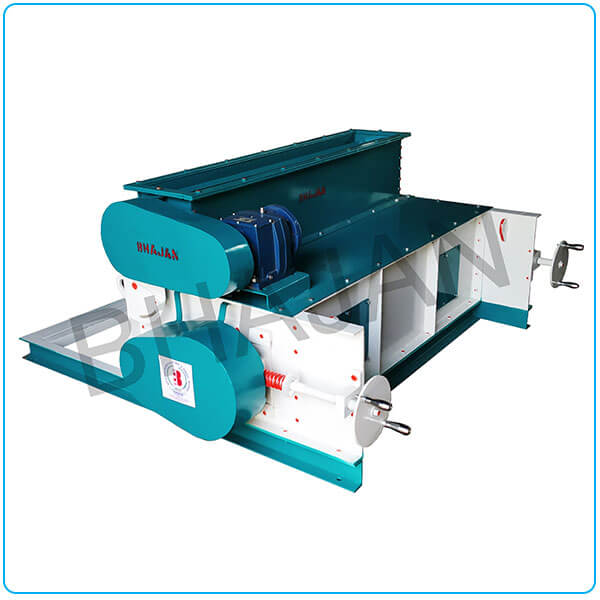

Crumbling: Latest designed Crumblers are used in our plants in which Crumbler is equipped with rotary distributor; direct by pass Shute & Gap adjustable crumbling rolls. Very less fines re-circulate during operation.

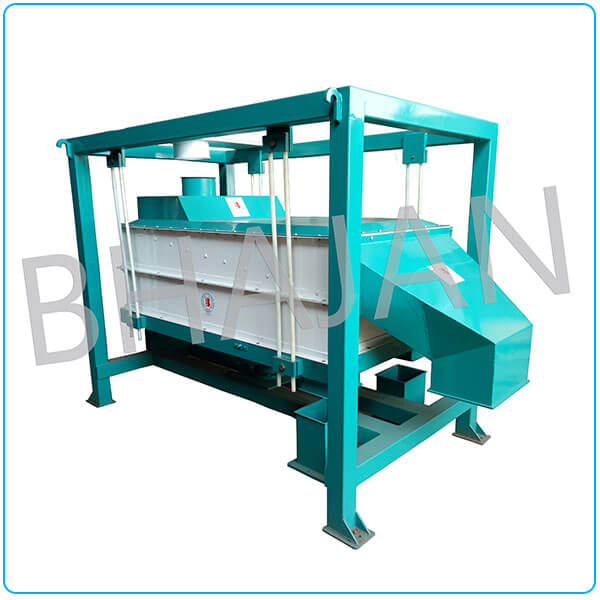

Screening Latest designed screener is used for best screening results with zero breakdowns due to vibration.

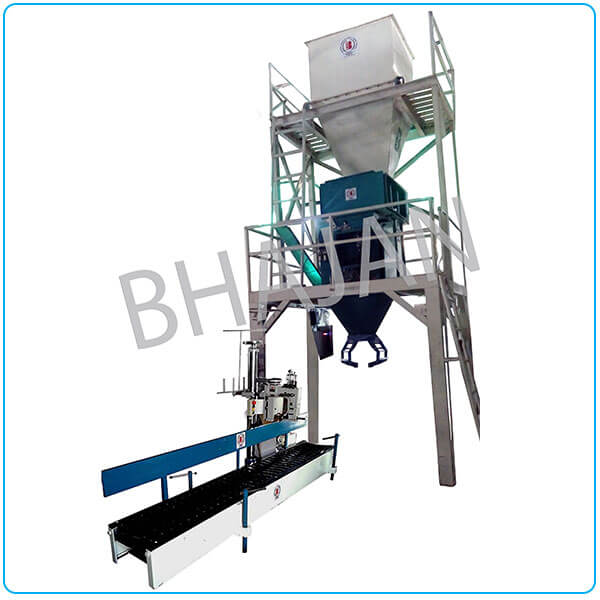

Bagging: Bagging is manually done. Provision for automatic bagging is already there for future.
