Description

Bhajan’S manufactures the most exclusive and productive machines for industrial turmeric grinding purposes. Having excellent experience & Innovating the ultra modern technology in spices machinery helps us to establishing goodwill in India as well as abroad. Our excellently designed and fabricated Turmeric Grinding machine is highly useful and effective in grinding raw turmeric to make turmeric powders which is used for cooking purposes. We are not only manufacturing but also are supplying and exporting these top grade automatic turmeric grinding plants. Turmeric powder is a traditional spice of India & it is used in almost each & every home as a prominent spice. Due Rapid population growth, demand is increasing day by day. To cater this increasing demand, good machinery is required in the whole process. Most of the Turmeric powder producers, established their names and brands especially in urban markets due to their best quality. Hence, a new small scale unit with limited financial resources has to concentrate on semi-urban and rural markets where these brands are not much popular, price is the driving factor and consumers prefer fresh spices. Marketing will be a key success determinant in this line.

Turmeric Manufacturing Process

The Turmeric powder manufacturing process includes Following steps:-
CLEANING, GRINDING, SCREENING & PACKING.

It is necessary to clean the raw Turmeric to remove impurities from it. After the cleaning process, Turmeric’s are roughly grinded (due to solid in nature) in a grinder to convert them in granular form. These granular are pulverized in the Impact Pulveriser to convert it into fine powder form. After this screening is done to get the required mesh size. Finally, packing is done in polythene bags and bags are sealed.

About Turmeric powder making machine

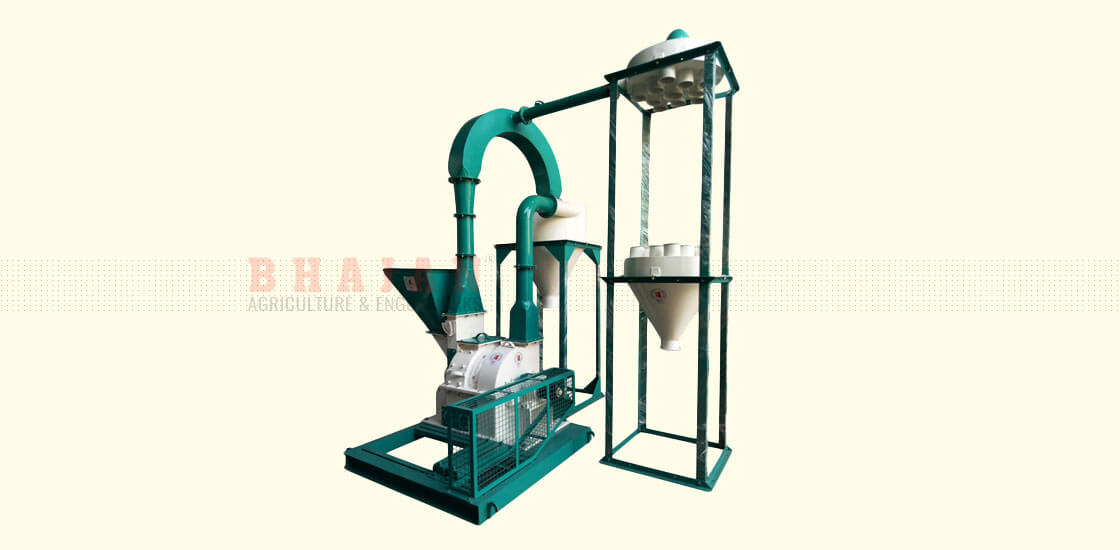

Brand Turmeric grinding machine meets most capacity requirements. It lend themselves to a wide degree of adjustment with finesse of the finished products ranging from about 60 mesh to bulk passing through 300 mesh depending to a considerable extent on the particular materials being handled. It combines grinding, classifying and conveying all in one single unit. It grinds with easy, economy and safety offering a wide range of particle sizing of any non-abrasive material, hard or soft from granular to finest dust up to 300 meshes.

Working & Principle

The Turmeric grinding machine consists of an encased rotor carrying swing hammers, knife for fineness regulation and pressure gradient creator mounted on a solid shaft. Raw material to be pulverized enters the crushing chamber through the hopper or the automatic rotary feeder. The impact of the hammers on the feed material against the liner plates reduces it into fine powder. The ground material is carried towards the knife for classification and the oversize particles are rejected by the classifier and returned to the crushing chamber for further grinding. The classified material is then conveyed into the cyclone for collection and bagging. A dust collector is provided in the system for ensuring dust less operation and for no loss of ground powder.

Features

High speed rotor assembly two-way reversible hammers / beater Easy access to Turmeric grinding machine interior through dual access doors Available in different size and models Cold and silent running Dust free operations Robust construction Low specific power consumption Durable long life Guaranteed grinding efficiency, particle sizes are finer and more uniform than that obtained from machine using screen.

Constructional Features

• Type: Air swept impact mill with knife in closed circuit
• Body: Heavy Duty M.S. fabricated body and aligned on a strong iron base with top bolted covers.
• Feeder: Automatic/ Manual feeder is provided along with machine, Automatic feeder is gear driven from the main shaft with feed control mechanism.
• Crushing chamber: Fitted with Special material/MS & Stainless steel cutter plates hard treated.
• Rotor: machined mild steel thick plates mounted on main shaft: solid alloy steel
• Knife: mild steel knife with adjustable spider to control fineness of ground powder up to 300 meshes depending on the type of material being pulverized
• Bearings: self-aligning ball bearings in cast iron housing with suitable grease cups for lubrication
• Hammers: forged alloy steel, hard faced, with manganese steel electrodes and balanced.
• Blower: paddle type with replaceable blades
• Cyclone: mild steel sheet fabricated dust collector: top and bottom halves of mild steel sheet, to be interconnected by dust bags
• Piping: all interconnecting mild steel piping supplied with loose flanges to facilitate easy erection
